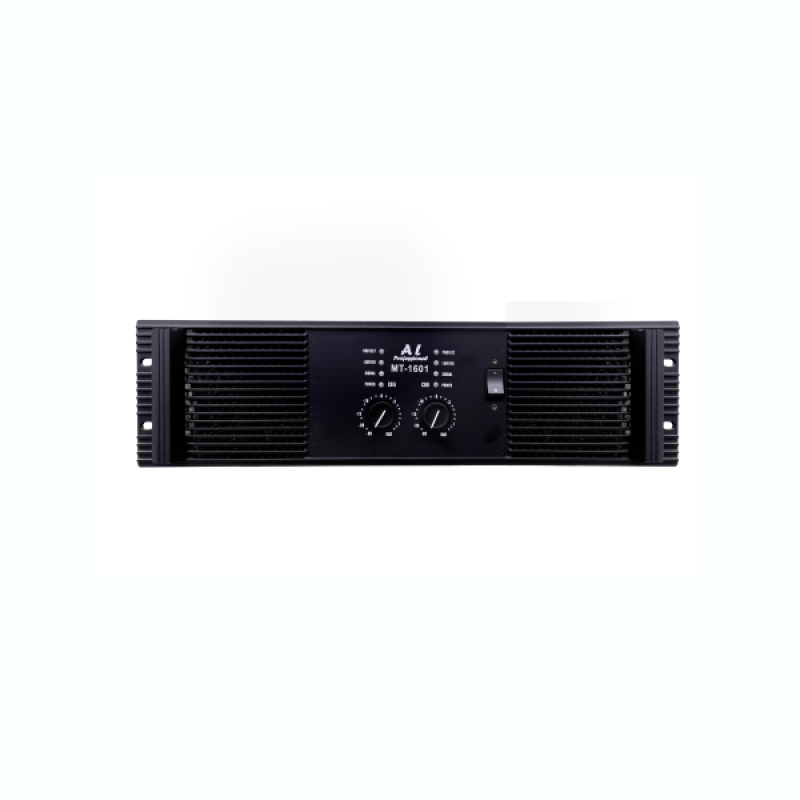

The MT1601 Power Amplifier is a premium amplifier designed for high-output professional audio applications. With 2x 3000W @ 8Ω and up to 5600W in 4Ω BTL mode, it provides immense power while maintaining clarity.

Its >102dB S/N ratio, low THD+N (<0.03% @ 8Ω 1kHz), and wide frequency response ensure rich, distortion-free performance. A high slew rate of 45V/µs and a damping factor >400 deliver precise control over speaker output.

Equipped with multiple safeguards, including overheat, short circuit, and clip limiting protection, the MT1601 is built to perform consistently in demanding environments such as concerts, auditoriums, and clubs.

With copper Transformer and heavy power supply.

Key Features:

• Power: 2x1980W @ 4Ω Stereo, 2x3000W @ 2Ω Stereo
• Bridged Power: 4200W @ 8Ω BTL, 6000W @ 4Ω BTL
• Frequency Response: 20Hz–20kHz (+0/-0.3dB)
• THD+N: <0.03% (8Ω 1kHz)
• S/N Ratio: >102dB
• Slew Rate: 45V/µs
• Damping Factor: >400
• Crosstalk: >56dB @ 1kHz
• Input Sensitivity: 0.775V / 1.0V / 1.44V selectable
• Input Impedance: 20KΩ (Balanced) / 10KΩ (Unbalanced)
• Protection: Overheat, short circuits, DC, limit, soft-start, relay-zero current switch, clip limiter
• Dimensions: 655×585×200mm
• Weight: 43 kg
